| Overview
The WiNRADiO WR-3500e receiver complements the popular 3000-series by extending the operating frequency to 2.6 GHz, as well as offering additional IF bandwidths and improved AGC control. This is a high-end external receiver, intended for government, military, security, surveillance, media monitoring and industrial applications. The frequency range is 150 kHz to 2.6 GHz. (excludes cellular frequencies 825-849 and 869-894 MHz).
Minimum Computer Requirements All WR-1550 and WR-3000 series receivers run on Windows 95, 98, ME, NT, 2000 and XP. While functional with a minimum CPU speed of 100 MHz, faster speed is strongly recommended for best performance. If additional signal processing and decoding options are used, higher CPU speed is required. Software
The software features numerous tuning and scanning options, virtually unlimited memories and a rich on-line help facility. Support is also provided for software developers wishing to write their own applications code for WiNRADiO receivers.
M.S.R.P $2495.00
|
|
The WiNRADiO WR-3500e hardware/software package consists of the receiver unit {4.25"W x 1.75"H x 8.5"D}, Windows-based software, RS-232 cable, multi-voltage power adaptor(12 VDC @ 300 mA; 120VAC/12VDC @ 2.5), start-up antenna and a user's manual. Current required: 500 mA max.
Hardware The external unit connects to an IBM PC compatible computer via a serial interface cable (PCMCIA interface adaptor is optional).

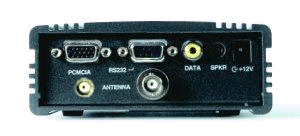

The unit has its own speaker. At the rear of the unit, there are connectors for the antennas (BNC for frequencies under 1.5 GHz, SMA for higher frequencies), serial control port, PCMCIA control port, external speaker, power and a data output interface (discriminator output).
