WR G315i

The WiNRADiO WR-G315i is a software-defined high-performance VHF/UHF receiver (9 kHz to 1800 MHz, extendable to 3500 MHz using an
optional downconverter) on a PCI card.

This receiver is intended for government, military, security, surveillance, broadcast monitoring, industrial and demanding consumer applications.

The receiver offers an unparalleled flexibility given its SDR architecture, respectable dynamic range, and high sensitivity. Many useful features complement the receiver, making it capable of filling not only the role of a monitoring receiver but also that of a measuring receiver, such as the calibrated S-meter showing the received signal levels in dBm, µV or S-units, down to the ‑140 dBm noise floor, several spectrum analyzers, and many other features not usually found on receivers of this price.

The hardware and software package consists of the receiver card, Windows-based software, a start-up antenna and a user's manual.

The PCI card plugs into an available slot of an IBM-compatible PC. Several receivers (as many as there are free PCI slots available) can be controlled by a single PC - an ideal solution for high-performance multi-channel automatic monitoring systems.

There is a single SMA antenna connector and an output line audio jack which can be used to connect the receiver output directly to a sound card line-input or an amplified speaker.

The receiver has its own on-board DSP, and does not rely on the PC sound card for its performance. As the DSP performs the final stage IF filtering and all demodulation, this receiver is entirely software-defined, which means that additional demodulation or decoding modes can be easily added by a mere software change. (For example, an optional DRM decoder/demodulator is also available.)

No cables or power supplies needed - no clutter on your desk. Every modern desktop computer can be converted into a powerful VHF/UHF monitoring station with minimum fuss.

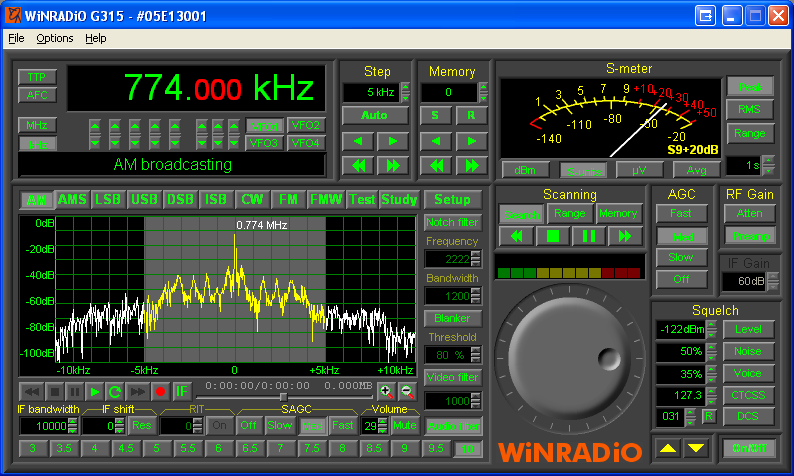

The WR-G315i software contains numerous advanced features such as three types of scanning, five types of squelch, many tuning options, virtually unlimited memories and a rich on-line help facility:

Apart from audio recording and playback, the receiver can also record an entire 20 kHz wide IF spectrum, making it possible to thoroughly analyze the received signal, and "re-receive" the same signal again and again with different IF filter bandwidths, notch filter, noise blanking or demodulator settings, to arrive at the best possible reception of weak or interference-prone transmissions.

In addition to the real-time narrow-band spectrum analyzer, there is also a wide-band spectrum analyzer which contains additional professional instrumentation facilities: the ability to display minimum and maximum spectrum sweeps, search for peaks, average spectra, save and print spectra, marker mode, etc.

Another useful feature, previously unavailable with receivers of this price class, is a test and measurement facility, performing measurements on the received signal including frequency accuracy, amplitude modulation depth, frequency deviation, THD (total harmonic distortion) and SINAD. An audio spectrum analyzer is also included, making it possible to observe the demodulated spectrum in real-time with a resolution of 5 Hz.

The unique research and education function makes it possible to explore interactive block diagrams of the software-defined demodulator, for each demodulation mode, and observe demodulation taking place on real-time signals using two spectrum analyzers and a vector voltmeter.

The standard WR-G315i package includes:

 WR-G315i receiver card
 Application software
 Comprehensive user's manual
 Start-up antenna
 Audio lead
 BNC-to-SMA adapter

System requirements:

 PC with 500 MHz Pentium CPU or faster
 One free PCI slot
 Windows 98/ME/2000/XP
