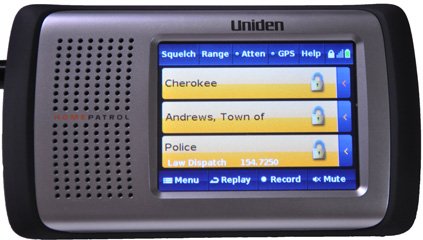

The most astounding advance in scanner technology since digital reception now
self loads at any location in the U.S. or Canada! Simply enter a zip code or
city name or even attach your GPS receiver for automatic loading of police,
sheriff, fire, ambulances, highway patrol, and more!
No more touchy banks, systems, groups,
or even frequency entry (unless you want to). A large (3-1/2”) color touch
screen responds to your commands and reads out information you need.
Monitor conventional trunked
radio systems, analog or P25 digital, and AM or FM modes for CB, aircraft, hams,
public safety, business, government, and military communications in the 25-54,
108-512, 758-960 MHz ranges (less cellular).
Get online updates with the
USB port. Record up to 4 minutes of received messages. Select the S.A.M.E.
emergency weather alarm for vital bulletins in your area.
Measuring only 5-1/2”W x 3-1/4”H x
1-3/8”D and weighing 15.9 ounces with batteries and antenna, this compact,
feature-packed scanner is suitable for fixed, mobile, or portable applications.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Note from
Bob Grove:
HOME
PATROL EXTREME UPDATE (purchase & download from the Uniden HomePatrol page)
This new,
paid update
is applicable to all models of the HomePatrol scanner, including the first
production units. There are three updates in one download:
1.
Sentinel software
now includes:
Full manual programming to create new systems, edit existing systems, and
edit your favorites list.
New channel options like time-selectable per-channel delay, audio alert for
specific channel activity, adding channels to existing trunked systems, and
perform user-selectable geographical searches.
Export Google-map points of interest (KML files) and share them as well as
create multiple favorites lists to expand coverage areas.
Create and edit your own files
Automatically record audio in the trunk discovery mode for newly-found talk
group IDs
Record audio and DCS/CTCSS subtones on newly-found channels between two
manually-entered frequencies to help identify unknowns.
2. A
trunk system analyzer
shows on-screen control information flow (channelgrams, radio on/off
affiliations, logging information).
A channel-activity analyzer and an EDACS LTR LCN analyzer are included.
3. A
color bandscope
shows active channels graphically like a spectrum display.
An RF power plot allows you to watch signal strength go up and down on any
active channel to show propagation shifts as well as offer radio direction
finding capability with a directional antenna and antenna experiments for best
reception.
HomePatrol Manual pdf format
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Suggested Accessories
WBHP1 Windshield Mounting Kit
HomePatrol Mounting Bracket
BNC female ~ SMA male adapter
(required for non-stock antenna use)
Uniden Serial Cable (GPS)
(will not work with Garmin NUVI-260W)
Garmin GPS18X PC
Uniden HomePatrol Hard Leather Case/Fixed Belt Loop
Uniden HomePatrol Nylon Case/Fixed Belt Clip
Uniden HomePatrol Soft Leather Case/Swivel Belt Clip
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Technical Specifications
|
Display |
Standard 3.5-inch Hi Color LCD (65K) with backlight QVGA 320 X 240 (3.5
inch) |
|
Touch Panel |
LCD with Touch Panel |
|
Controls/Switches |
Power On/Off Volume Control
Reset Switch |
|
External Jacks/Slots |
ANT. Jack - SMA Type
Phone Jack - 3.5 mm (Stereo Type) - 32 ohm (Stereo headphone) - 64 ohm
(Earphone)
Line Out Jack - 2.5 mm (Stereo Type) - 600 ohm for Audio Output
DC Power Jack - EIAJ Type-3 (Center Positive)
GPS Interface Jack - 4-pin Mini Type (RS232C)
USB Jack - 5-pin Mini USB Type
Memory card Slot - MicroSD Type |
|
Internal Speaker |
8
ohm. 2.0 W Max (36 ø) |
|
Power Requirements |
4 x AA size
Rechargeable NiMH Batteries (2300mAh) (included) 4 x AA size Alkaline
Batteries (not included) or AC Adapter (AC 120V 60Hz 9V 800mA Regulated)
(included) DC Adapter (DC 12V to DC 9V 800mA Regulated) (included)
|
|
Operating Temperature |
1
10° C) ~ +140° F (+ 60° C) |
|
Storage Temperature |
30° C) ~ +140° F (+ 60° C) |
|
Size (mm) |
3.3 in (84.5 mm) H x 5.9 in (149 mm) W x 1.5 in (38.4 mm) D (Without
antenna) |
|
Weight |
10.6 oz (300g) (Without batteries and antenna) |
|
Accessories |
AC Adapter (9V 800mA DC Out) DC Adapter (9V 800mA DC Out – Cigarette Lighter
type) AA size NiMH Rechargeable Battery (2300mAh X 4) Rubber antenna (SMA
type) USB cable (USB A to USB Mini B Type) (2GB) Desk Use
Bracket (Stand Type)
BNC-SMA Adaptor not included |
| Scanning Speed
|
100 CH/Sec (maximum)
|
| Trunk Tracking
|
Motorola Type I 800 Motorola Type II
800, 900, UHF, VHF EDACS Wide, Narrow LTR APCO P25 |
Specifications for this unit are subject to change without notice by the
manufacturer. |
