Spectrum FFT Display Unit Enhance your monitoring with visual
spectrum and waterfall displays of activity up to
 |
Spectrum
FFT Display Unit
Enhance your monitoring with
visual spectrum and waterfall displays of activity up to +/-5MHz from the
centre frequency, updated in real time up to six times per second. A range
of receivers are supported including the AR-ONE, AR5000, AR3000A, ICOM R8500
and many others. An RS232 port is also provided for PC control.
|

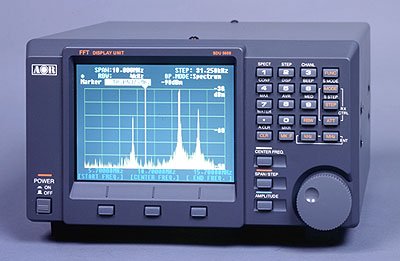

The SDU5600 provides maximum operator
flexibility and convenience along with highly accurate information in an
advanced technology instrument.
|
|
Digital Signal Processing |
Digital signal processing
and fast fourier transform algorithms combine to make the SDU5600 a very

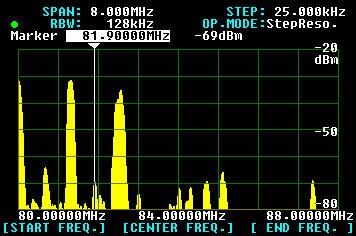

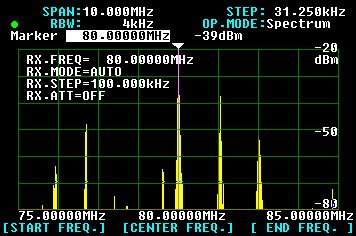

powerful spectrum display system. The result is a graphic display, and
textual information, that is fast and accurate.
|
|
Interactive Menu |
Interactive menu driven choices put potent analyzing tools at your
disposal. You can control AOR AR-ONE, AR5000 and AR8600 series
receivers through the interface with the SDU5600. Control for some
other receivers is also possible including the ICOM R8500. You may also
engage in computer aided control of the SDU5600 and utilize a PC as an
integral part of the analysis process. All this is possible through two
RS-232C ports on the rear panel.
127mm (five inch) TFT color display
graphics are clear, crisp and sharp. Color adds to the ease of use,
particularly the waterfall feature making the SDU5600 as useful on the
bench as it is in the field or as part of permanent mobile operation.
|
|
"Next Generation" |
The AOR SDU5600 is the "next
generation" in spectrum display units employing DSP and FFT (Fast Fourier Transform),
faster sampling rates and color imaging, the SDU5600 opens the door to
new possibilities and applications. With sampling at up to six times
per second, the operator is quickly aware of new active frequencies.

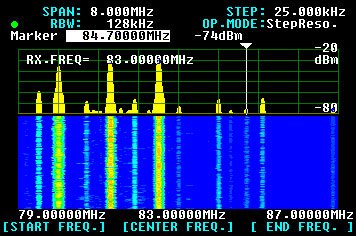

The "waterfall display" function is truly a great convenience, along
with a host of menu driven selections and features.
Other receivers equipped with a 10.7 MHz IF output
can provide signals to the SDU5600 but the sweep span could be limited
depending on the IF characteristics of the chosen receiver. |
|
Free download (pdf file)
SDU5600 Owner's
Manual
SDU5600 Catalog
SDU5600 Command
List
The following accessories are
supplied
1 Control cable for the AR5000 models (DB-9 type male)
1 BNC patch cable for IF connection
1 Instruction manual
1 120 V AC adapter
|
Configuration of the companion receivers
Your SDU5600 may be used with the following companion
receivers. (Note: Some receivers require modifications.)
|
Receiver Menu |
Model Number |
Remarks |
|
AR 5000 |
AR5000A+3
AR5000A
AR5000
AR5000+3
|
Set External IF output |
| AR
3000A |
AR3000A |
10.7 MHz IF modification required
Baud rate: 4800 bps |
|
AR 8600 |
AR8600
|
10.7 MHz all mode modification required |
|
AR 8200 |
AR 8200MKII
AR 8200MKIII
|
45 MHz IF modification & CC8200A
required |
|
AR ONE |
AR ONE
|
Set IF output frequency |
|
RFU5600 |
RFU5600 |
|
|
IC-R8500 |
IC-R8500 |
|
|
IC-R7100 |
IC-R7100 |
Optional CT-17 required |
SDU5600 Specifications
|
Input Frequency |
10.7MHz
/ 45.05MHz |
|
Maximum
Frequency Span |
10MHz |
|
Frequency resolution |
4, 32,64
,128 kHz
|
|
Input
level range |
+0 - 90 dBm |
|
Display dynamic range |
60 dB |
|
Input
impedance |
50 ohms |
|
Display |
5 inch color TFT
display |
|
Serial
ports |
2 RS-232C ports (For
receiver and PC control) |
|
Power
requirement |
DC12V / 0.9A |
|
Control |
26 keys & one rotating
dial |
|
Dimensions |
220(W) x
120(H) x 195(D) mm
Projections not Included |
|
Weight |
Approx. 2.3 kg (Approx 5 LBS) |
Specifications subject to change without notice or obligation.
|
|
AOR SDU5600
$1,675.00
|
|
