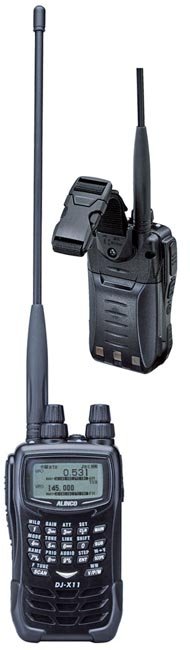

Alinco DJ-X11T

SCN24



$329.95$319.95

Wide Band Communications Receiver DJ



Features


  • 2VFO simultaneous RX
  • Main-band coverage: 0.05-1,299.99995MHz all mode AM/FM/WFM/SSB/CW (BFO for SSB/CW receive. An external antenna required for practical HF monitoring. Internal bar antenna for AM broadcast reception and earphone antenna feature inclusive.)
  • Sub-band coverage: VHF:118`171MHz/UHF:336`470MHz in AM/NFM
  • 1200 memory channels with adjustable memory banks using utility freeware (optional PC cable required)
  • IQ signal and Discriminator output features: DJ-X11 has an IQ signal output that can be used with 3rd-party software to operate as a SDR. 10.7MHz IF discriminator signal can be used with other receiver-related software available on the net such as AIS-plotting.
  • Voice-guidance system reads entering/entered frequency in English
  • Easy-to-use twin dials
  • Pocket size unit measures 61 (W) x 106 (H) x 38 (D) mm / 2.4 (W) x 4.17 (H) x 1.50 (D) in (without projections)
  • Rugged Polycarbonate body with rubber protectors
  • Selectable tuning steps: 0.05/0.1/1/5/6.25/8.33/9/10/12.5/15/20/25/30/50/100/125/150/200/500kHz/1MHz
  • Various scan modes: Preset, programmed, memory, VFO and tone scan
  • 3 selectable scan speeds (VFO: 25ch/s, 33ch/s, 100ch/s, Memory: 4.5ch/s, 8.3ch/s, 20ch/s)
  • TSQ and DCS decode
  • Wire remote-control using optional EDS-12
  • Long-lasting 1800mAh Li-Ion battery pack provides nearly 15 hours of operation at full audio output in a single RX mode
  • 1200 Alphanumeric (up to 16 characters) memory channels
  • Additional 100 memory channels are available for each Dual-mode memory, Search-pass, Priority monitoring and Programmed Scanning pairs
  • Large, brightly illuminated full dot-matrix LCD and keypads
  • Dual channel-scope (Alinco's patented spectrum-analyzer alike feature)
  • Frequency counter and flash tune
  • "Bug detector" function searches for hidden transmitters
  • Illuminated keypad for comfortable operation
  • Standard Drop-in charger fully charges empty EBP-74 in 4 hours
  • RF gain and attenuator for both main/sub VFOs
  • Analog inversion-scramble decoder***
  • Included Accessories: Instruction manual / Whip antenna (EA-154) / Li-Ion battery-pack (EBP-74:1800mAh, 3.7V) / Belt-clip (EBC-23) / hand strap / Drop-in charger kit EDC-174A (120V) or EDC-174E (220V) / Dry cell case (EDH-36) * May vary, please ask your dealer before purchase.


* Operating times may vary subject to usage and settings. High-grade alkaline cells recommended.

About PC connection:


  • ERW-7 allows you to use clone or utility software only.
  • ERW-8 enables the use of both clone-utility AND real-time control software.

Both types of software are available for download at no charge from a link below. To use 3rd party SDR freeware, you will need to purchase a 3.5mm stereo mini-plug cable for connection to a PC. Functions are not guaranteed when used with 3rd party software. (ERW-4C serial cable is usable as a replacement to ERW-7 but it doesn't support firmware-update operations of DJ-X11.)

Indicative battery duration:


  • Approx. 35 hours (FM, single VFO, AF10% THD, 1 min RX/4 min Stand-by/EDH-36 (with Alkaline cells) or EBP-74)
  • Approx. 15 hours (FM, single VFO, Max AF outputEBP-74)





SPECIFICATIONS


  • Receiver range: Main VFO 0.05 - 1299.99995 MHz in All available modes / Sub VFO 118 - 170.995MHz & 336 - 469.995MHz in AM/FM (Cellular frequencies 824.000 - 849.995MHz, 869.000 - 894.995MHz blocked on T models. EGR model receives Ham and Broadcast bands only. 225 - 335.995 MHz in AM/FM may be usable although out of specification and warranty)
  • Mode: FM, WFM, AM, SSB (USB/LSB), CW (CU/CL)
  • Antenna Impedance: 50 ohms (SMA)
  • Supply voltage: DC 3.7V (EBP-74) / DC 4.5V (EDH-33) / DC 5.4V - 6.0V (external regulated source) negative ground
  • Current consumption: approx.130mA Mono band / 180mA Dual band
  • Temperature range: -10 to +60 dig C (+14 to +140 dig F)
  • Frequency stability: -7 to +3ppm(-10 to +60 dig C)(+14 to +140 dig F)
  • Dimension without projection: 61 (W) x 106 (H) x 38 (D) mm / 2.4 (W) x 4.17 (H) x 1.50 (D)
  • Weight: Approx.235g / 8.29 oz (Ant.& EBP-74 inclusive)
  • Receiver: Triple-conversion super heterodyne AM/SSB/CW/FM in Main VFO / Double-conversion super heterodyne AM/FM in Sub VFO and WFM in Main VFO
  • Selectivity: SSB/CW -6dB: 2kHz or more -50dB : 7.5kHz or less, AM/FM -6dB : 12kHz or more -60dB : 35kHz or less, WFM -6dB : 180kHz }40kHz -20dB : 470kHz or less
  • Sensitivity (typical value within the band: 10dB S/N: AM/SSB/CW , 12dBSINAD:FM/WFM):
    Main-band: 0.050~0.531MHz (AM) 5dBu   0.531~1.62MHz (AM) 2dBu   1.62~76MHz (AM) -5dBu    1.62~76MHz (SSB, CW) -10dBu   1.62~76MHz (FM) -15dBu   76~108MHz (WFM) -3dBu    108~136MHz (AM) -6dBu   136~174MHz (FM) -14dBu   175~221.75MHz (WFM) -6dBu    221.8~336MHz (AM) 0dBu   336~475.75MHz (FM) -13dBu   475.75~770MHz (WFM) -13dBu    770~1260MHz (FM) -9dBu   1260~1300MHz (FM) -6dBu
    Sub-band: 118~136MHz (AM) -3dBu   136~170MHz (FM) -14dBu   336~470MHz (FM) -14dBu *225~335.995 MHz in AM/FM may be usable although out of specification and warranty. Sensitivity is better closer to 336MHz. This band is closed at the default setting,
  • Audio Output power: More than 100mW (8ohm)


Specifications subject to change without notice or obligation. Cellular frequencies blocked on USA model. Unblocked versions available with proper documentation for authorized users only
